Pipes & Fittings

Marine pipe and pipe fittings in stainless and carbon steel, supplied to ASTM, ASME, DIN, JIS, BS and GB, from 1/2 inch to 96 inch, with mill certificates and classification society certification on request.

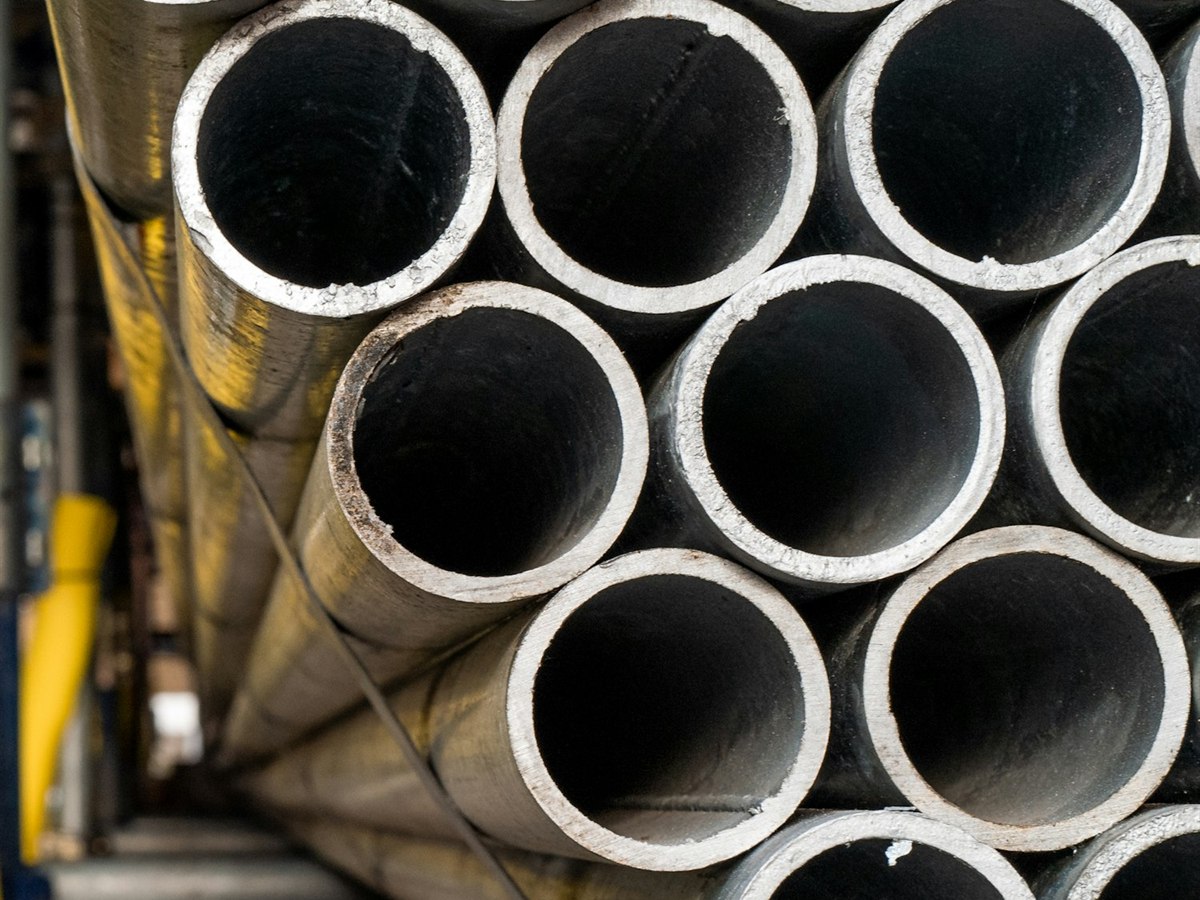

Pipe and tube

Seamless and welded pipe in stainless and carbon steel, supplied in standard lengths and certified to the standard named in the order.

Stainless steel, welded	ASTM A249, A269, A270, A312 and A554 — grades 304, 304L, 316, 316L, 201, 202, 409L and 430
Stainless steel, seamless	ASTM A312, A213 and A269 — grades 304, 304L, 316, 316L, 321, 317L, 347 and 310S
Carbon steel, seamless	ASTM A53, A106, A179 and A192, DIN 2391, DIN 17175 and API 5L — grades A and B, X42, X52, X65 and X70
Carbon steel, welded	ERW, SSAW, LSAW and SAW to API 5L, ASTM A53 and A106 — grades A and B, X42, X52, X65 and X70

Forged flanges

Types	Slip-on, welding neck, socket welding, blind, threaded, lap joint, long welding neck and orifice, in raised face, flat face and ring type joint
Materials	ASTM A105, A350 LF2, A694 F42 to F56, A182 F5, F9, F12, F22 and F91, A182 F304, F304L, F316 and F316L
Size	1/2 inch to 60 inch
Class	150, 300, 400, 600, 900, 1500 and 2500
Standards	ASME B16.5, ASME B16.47, MSS SP-43, DIN and JIS

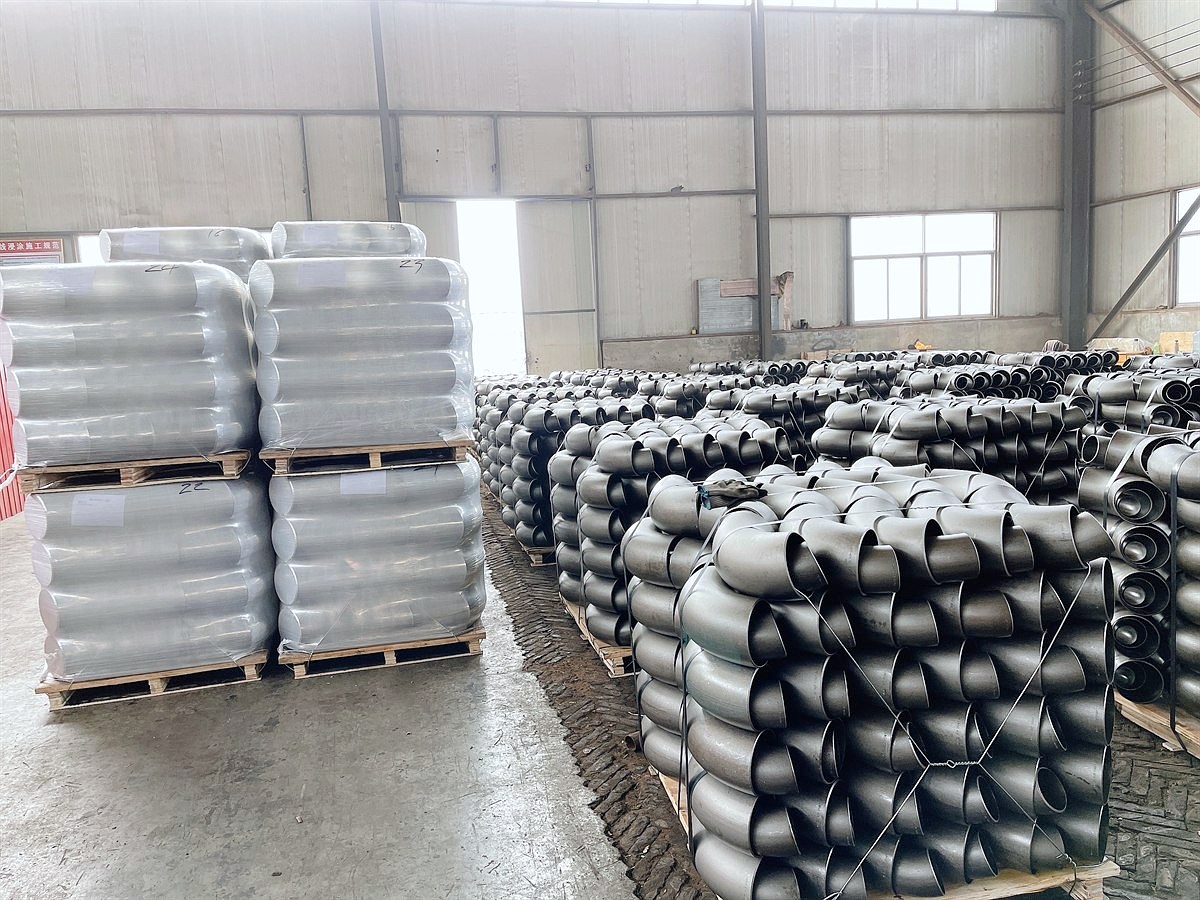

Butt weld fittings

Types	Elbows in long and short radius at 45°, 90° and 180°; bends at 3D, 5D, 7D and 10D radius; equal and reducing tees; concentric and eccentric reducers; caps
Carbon steel	ASTM A234 WPB and WPC, A420 WPL6, A860 WPHY 42 to 75, St 37.0, St 35.8, St 45.8, 10CrMo9-10, 15CrMo and 12Cr1MoV
Alloy steel	ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22 and WP91
Stainless steel	ASTM A403 WP304 and WP304L, WP316, WP316L and WP316H, WP347H
Size	1/2 inch to 24 inch, and 26 inch to 96 inch
Wall thickness	SCH 5S to XXS
Standards	ASME B16.9, ASME B16.28, MSS SP-43, DIN 2605, DIN 2617, DIN 2616 and JIS B2311, or to your drawing

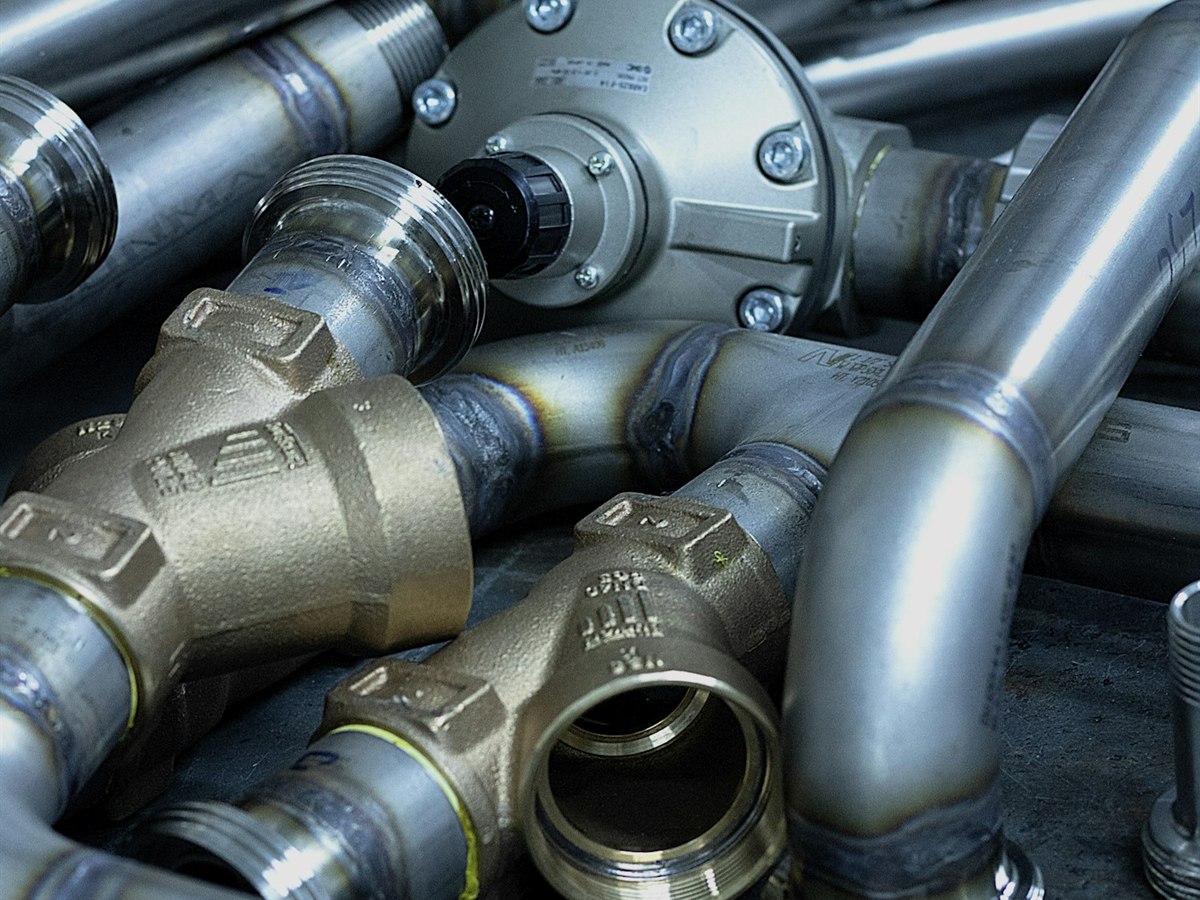

Forged fittings

Types	Elbows at 45° and 90°; equal and reducing tees; straight and reducing crosses; branch outlets in weldolet, sockolet, thredolet, nipolet and boss types; full, half and reducing couplings; concentric and eccentric swage nipples; stub ends, unions, bushings, plugs and end caps
Carbon steel	ASTM A105, A694 F42 to F70, A350 LF2, LF3 and LF6
Alloy steel	ASTM A182 F1, F5, F9, F11, F12, F22 and F91
Stainless steel	ASTM A182 F304 and F304L, F316 and F316L, F321 and F321H
Size	1/2 inch to 4 inch, and 1/2 inch to 24 inch for branch outlets
Rating	3000, 6000 and 9000 lb, or SCH 80, SCH 160 and SCH XXS
Standards	ASME B16.11, MSS SP-95, MSS SP-97, JIS B2316, BS 3799, GB/T 14383 and GB/T 19326, or to your drawing

Send the line list or material take-off with sizes, schedules, grades and the classification society, and we will come back with a quotation and lead times.
