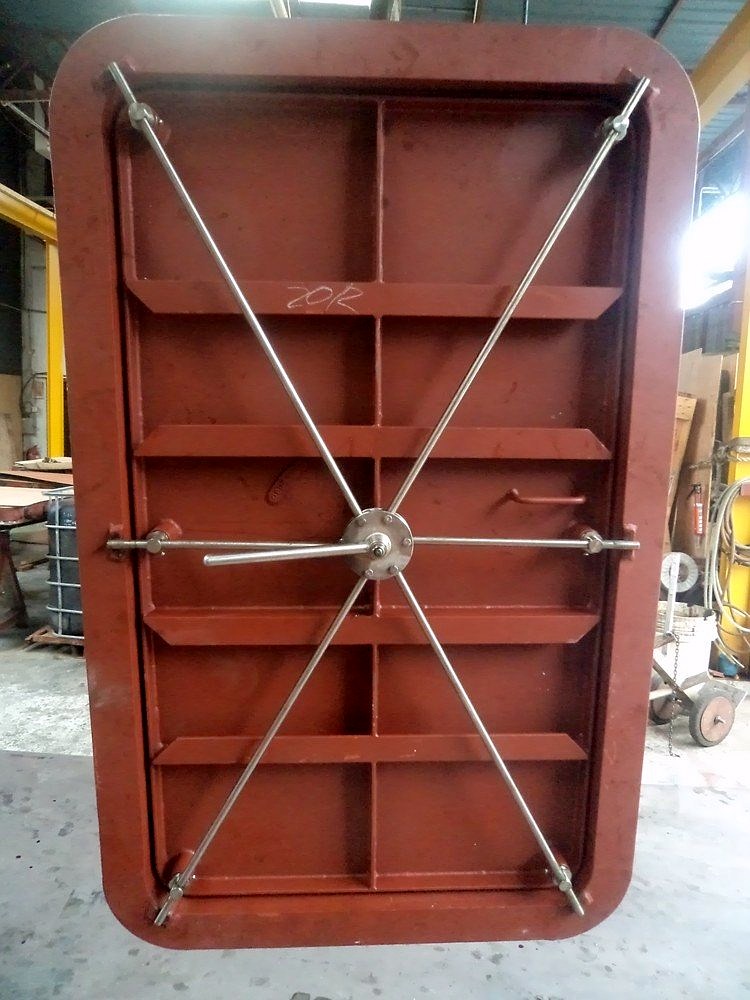

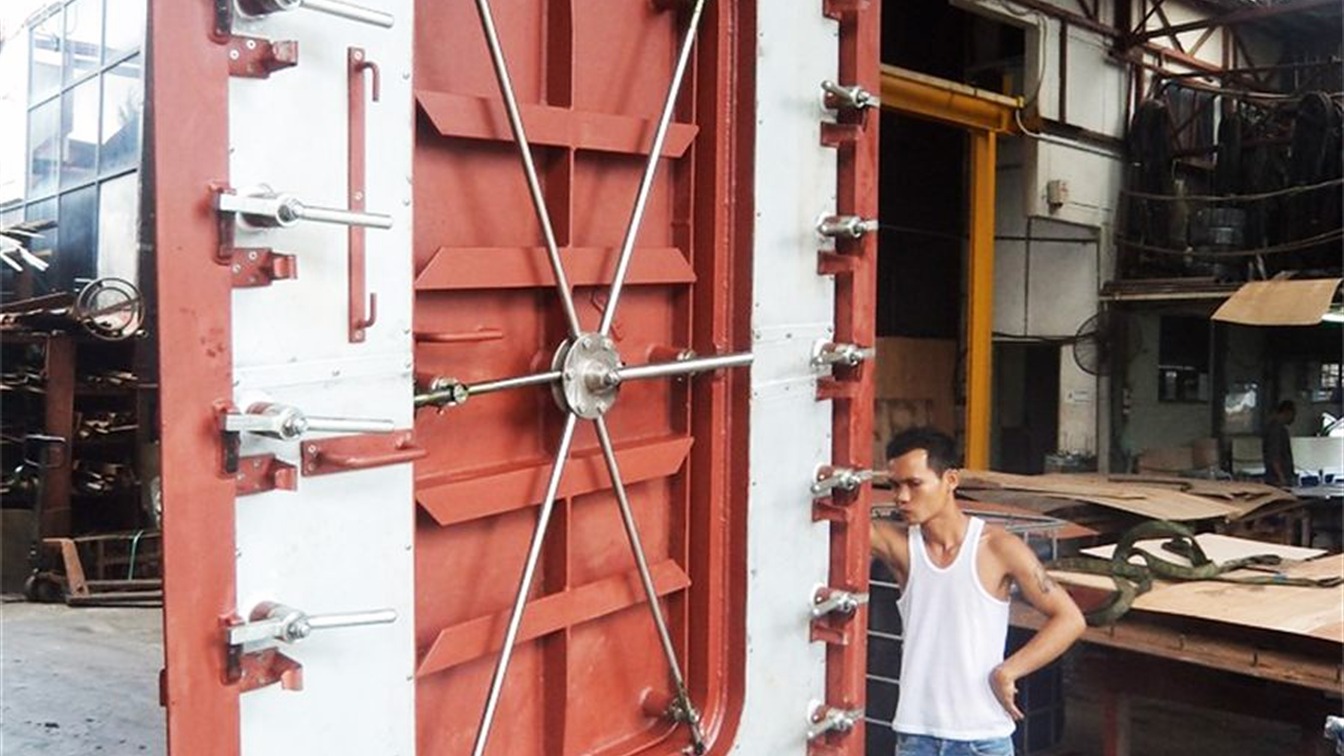

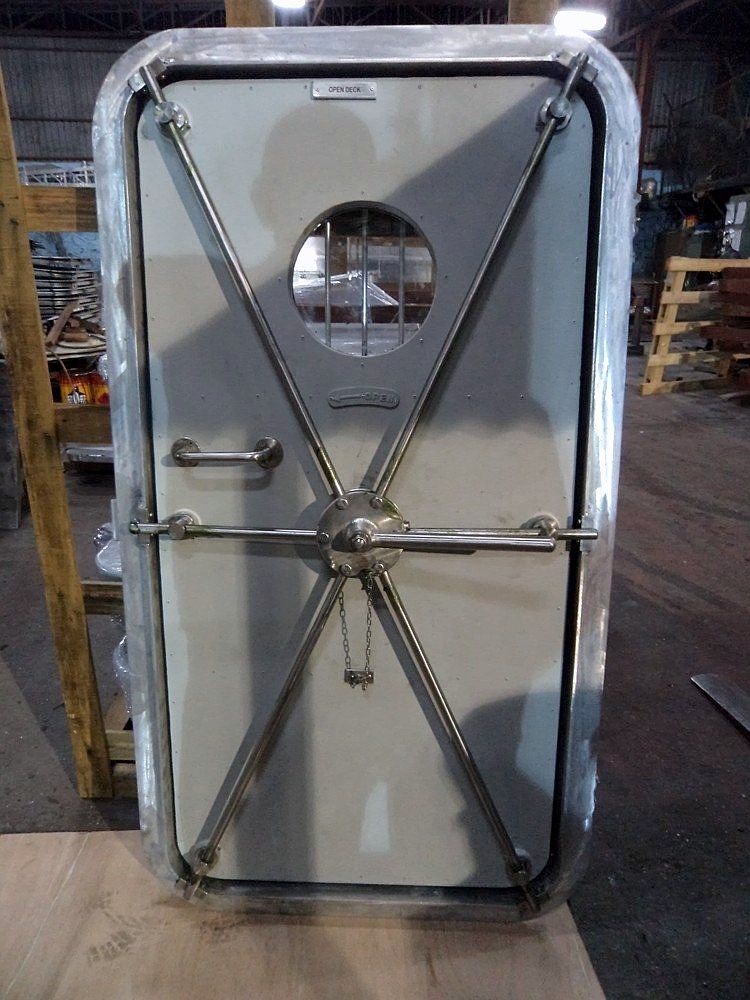

Hinged steel doors for watertight, weathertight and gastight openings, made to the size of the opening rather than to a standard range, and built to the rating the location calls for.
Ratings
The same door is built to different standards depending on where it sits in the vessel.
- Watertight, weathertight and gastight
- A0 and A60 fire rated
- H60 hydrocarbon fire rated
- Blast rated
Construction
| Material | ABS grade ship plate, aluminium, high tensile steel or stainless steel |
|---|---|
| Coaming | Angle bar or flat bar |
| Mounting | Bolted or welded |
| Operation | Hand wheel, lever or dog clips |
| Finish | Blasted and primed, or polished |
Accessories
- Door closer
- Fire-rated insulation gasket
- Thermal insulation
- Lock set
- Door stopper
- Limit switch
Certification
Unit certificates are raised per project to the classification society the work requires: ABS, DNV, BV, LR and others on application.
Send the opening dimensions, the rating required and the classification society, and we will come back with a quotation.
Doors already in service can often be refurbished rather than replaced.
Repair and refurbishment services ›
