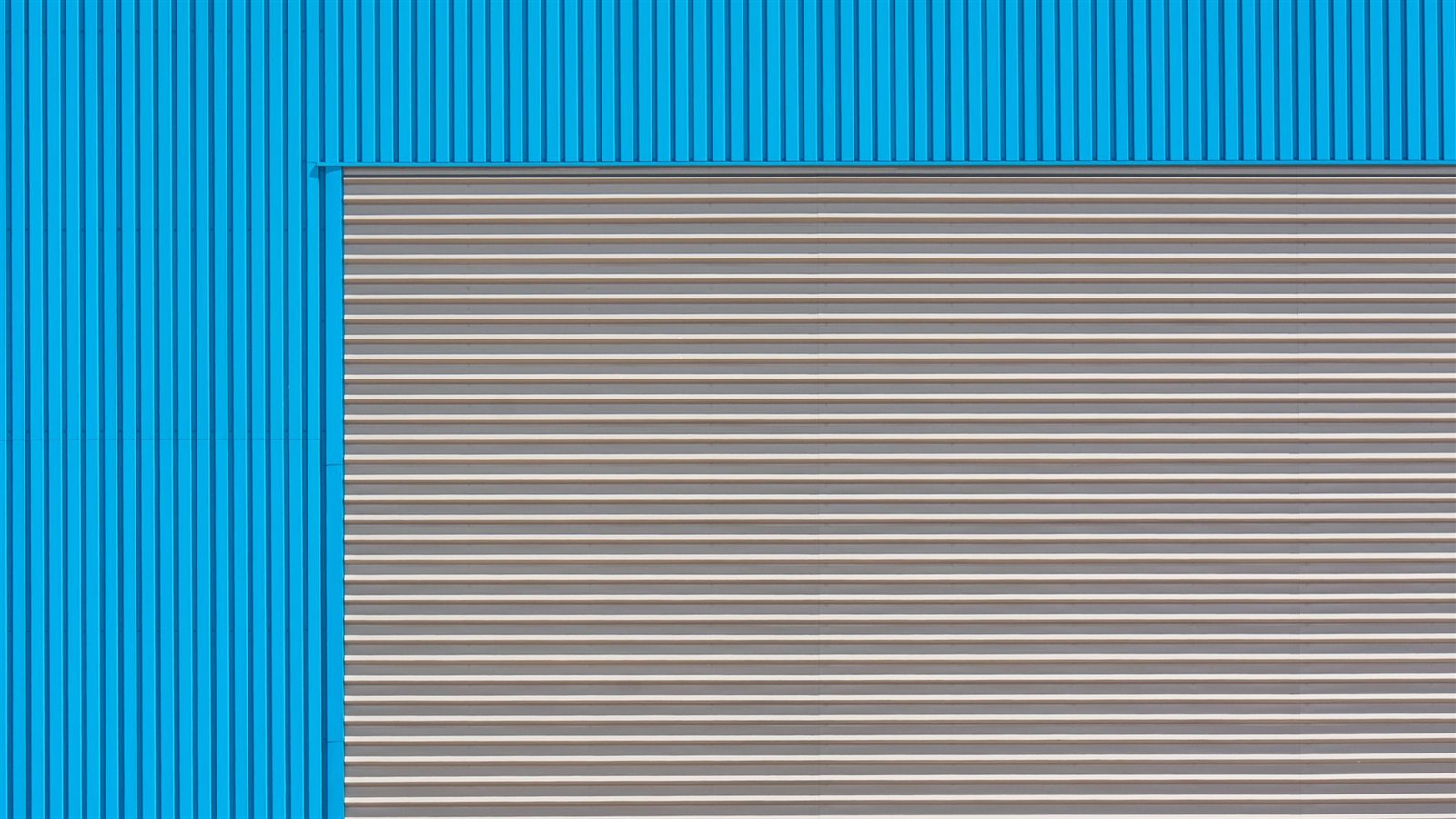

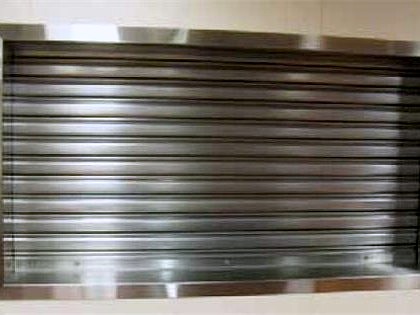

Roller shutters for main deck store openings, deck lockers, galley serving hatches and pantry counters, in stainless or galvanised steel, hand or electrically operated.
Construction
| Type | Non-fire rated, or A0 |
|---|---|
| Material | Stainless steel SUS304, galvanised steel or mild steel |
| Shutter box | SUS304, 2.0 mm |
| Slats | SUS304, 1.0 mm |
| Guide rails | SUS304, 2.0 mm |
| Shaft | SUS304 25A on stainless holders, running on bronze shaft wheels |
| Balance spring | Coil spring, carbon steel |
| Weight bar | Stainless square bar, 19 × 19 mm |
| Lining panels | SUS304, 1.2 mm |
| Operation | Manual or electric |
| Type approval | ABS and EU MED |
Fire closure
On an A0 shutter a fusible link releases the curtain at 72 °C, so the opening closes without anyone having to reach it.
Options
Serving tray, locking device and PTFE guide pads are fitted where the arrangement calls for them.
Ordering
The clear opening is 100 mm less than the hull cutting size. Send the opening dimensions, the material and whether the shutter is to be A0 rated, and we will come back with a quotation and lead times.
