Marine windows and side scuttles for wheelhouse, accommodation and hull openings, made to the opening and glazed to the duty the position calls for.

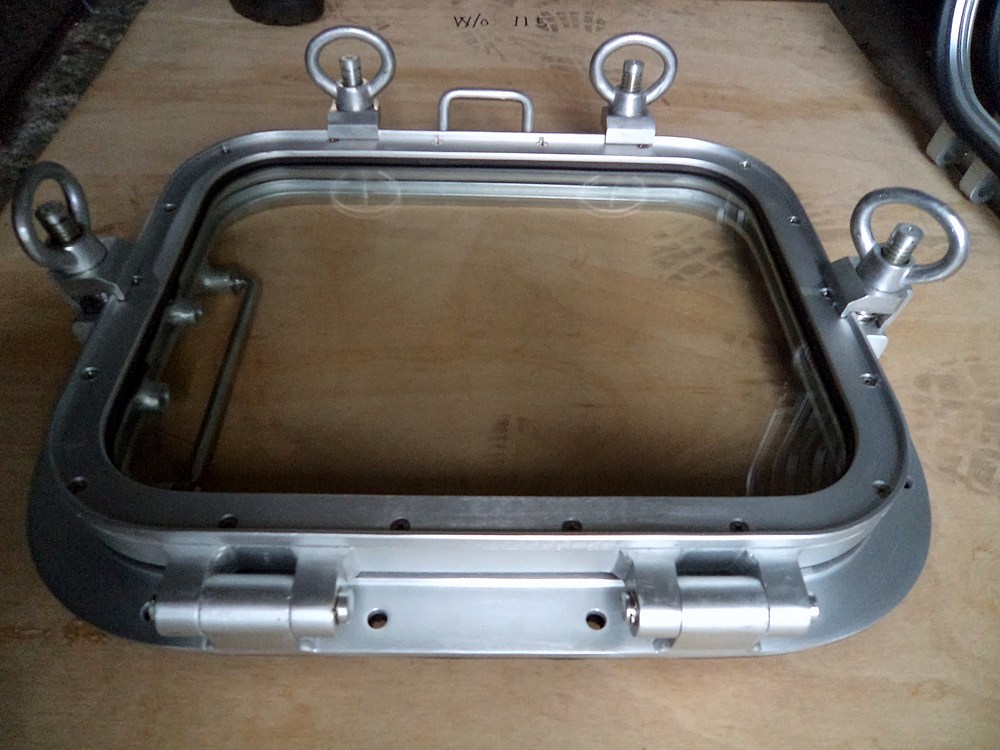

Windows
Rectangular windows for wheelhouse and accommodation fronts, designed to ISO 3903.

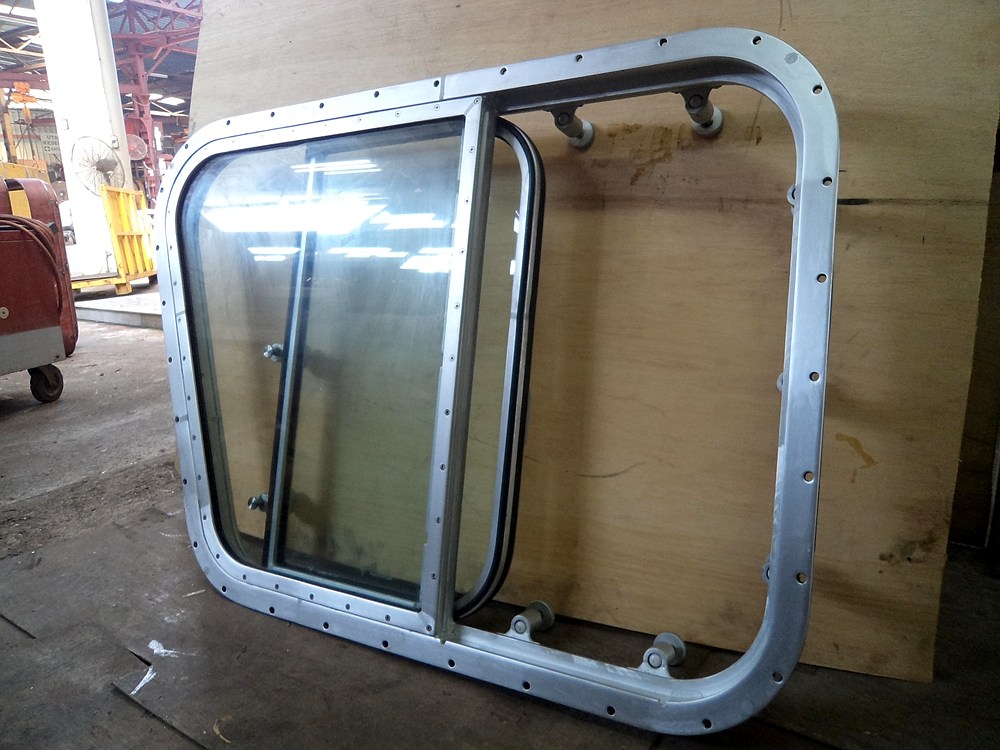

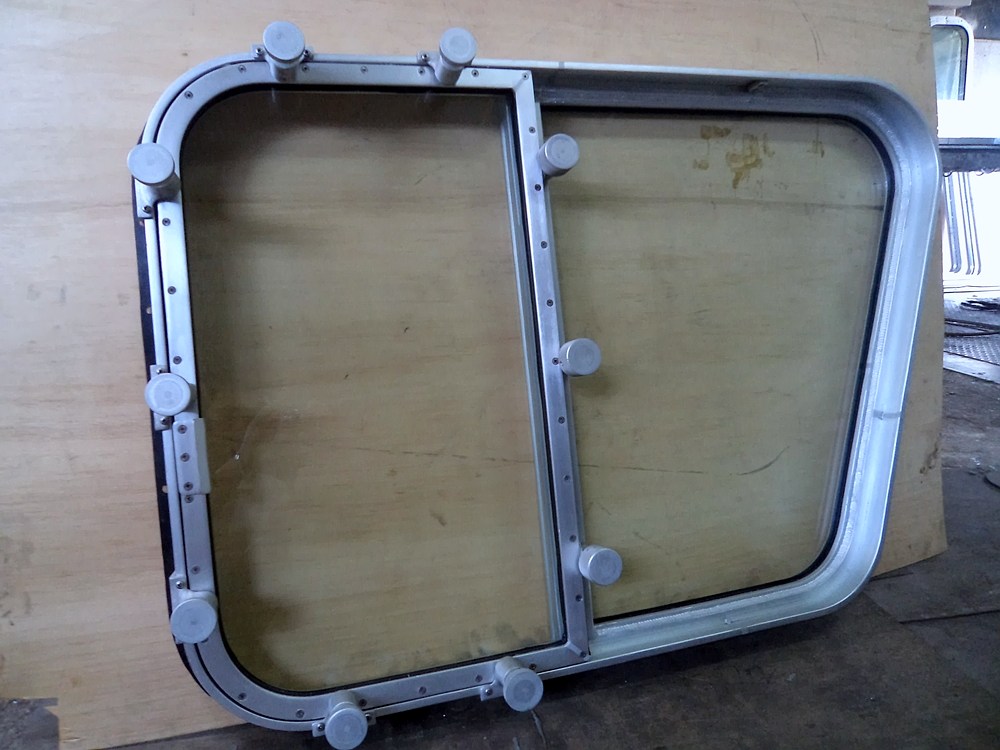

| Types | Hinged, fixed or sliding |
|---|---|

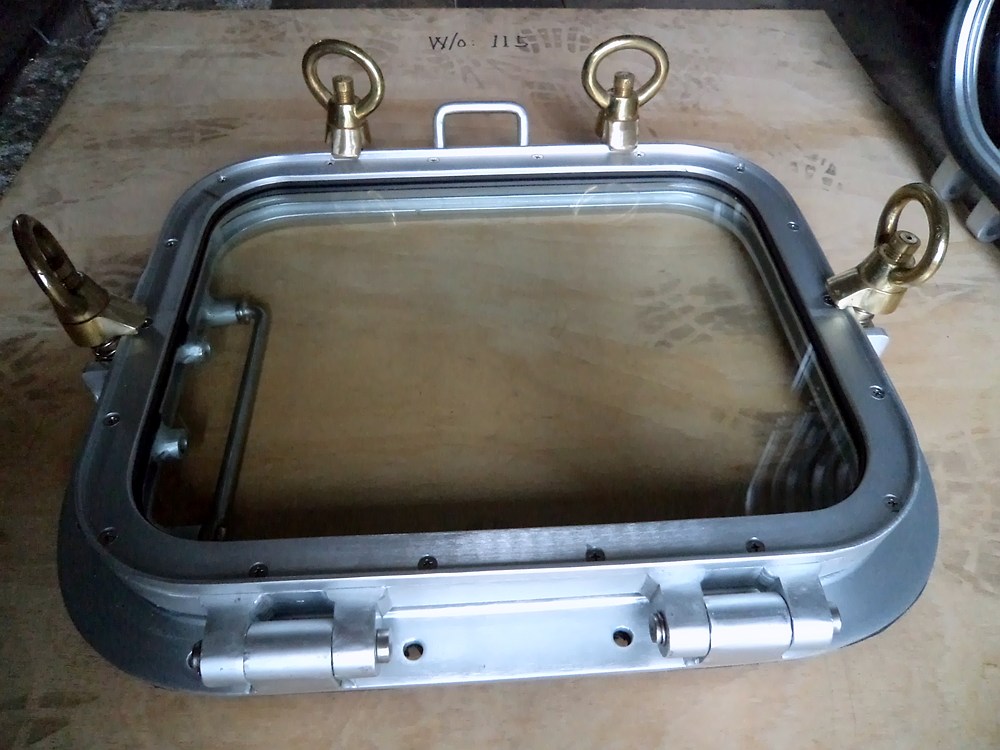

| Frame | Aluminium, steel or brass |
| Glass keep | Aluminium, steel or brass |
| Glazing | Safety toughened, laminated, double glazed or heated |
| Mounting | Bolted or welded |
| Finish | Primed or anodised |
Window ratings
Windows are built to the rating the position calls for.
- A0 and A60 fire rated
- H60 and H120 hydrocarbon fire rated
- Blast rated
- Bullet resistant, certified to NIJ, EN 1063, STANAG or UL 752

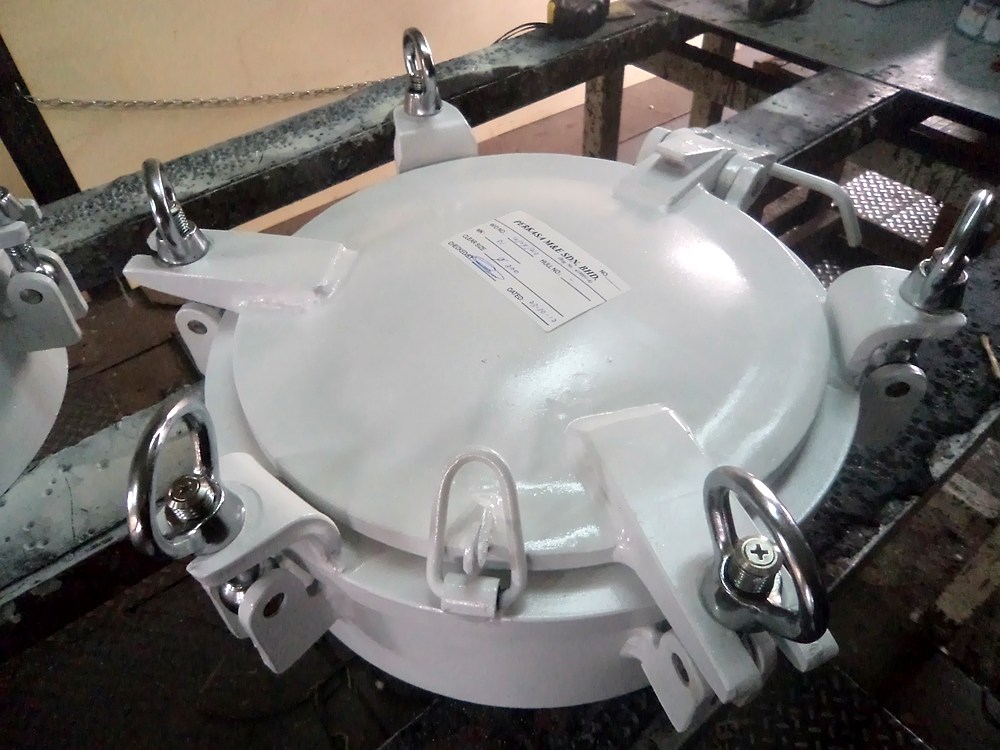

Side scuttles

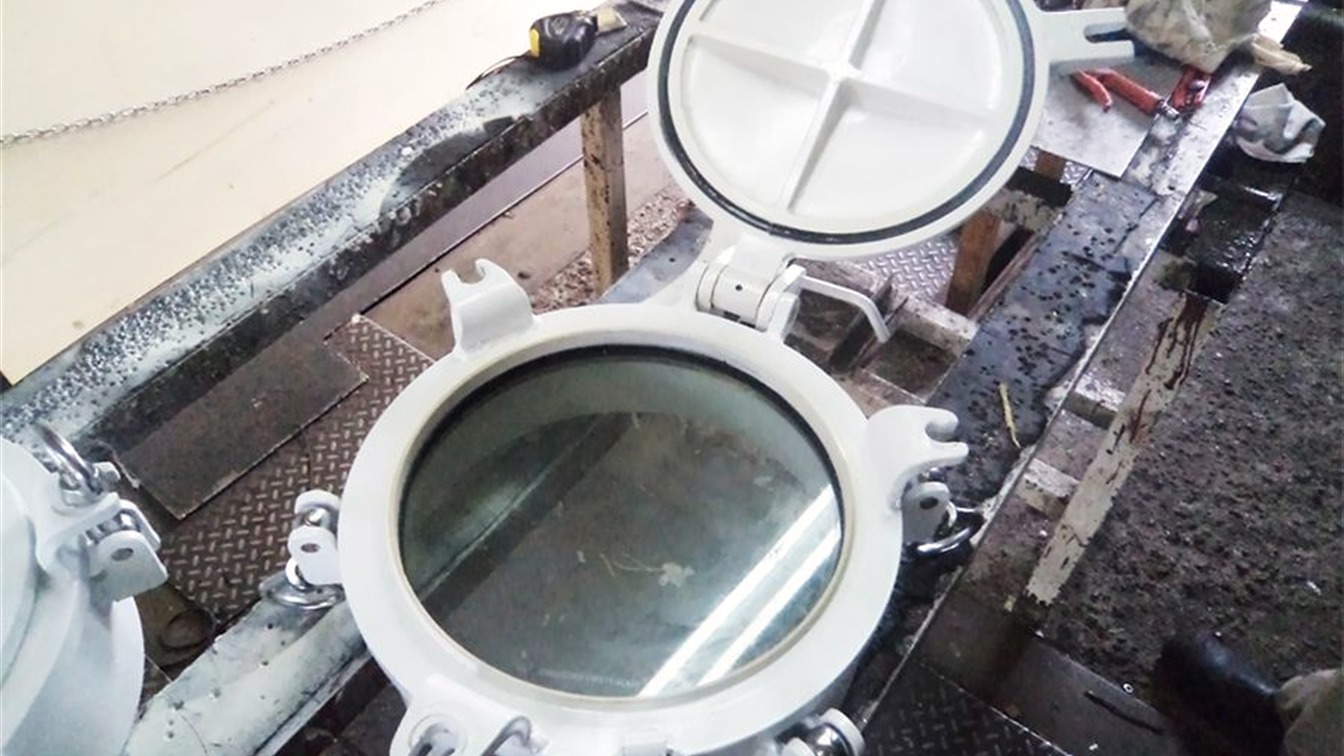

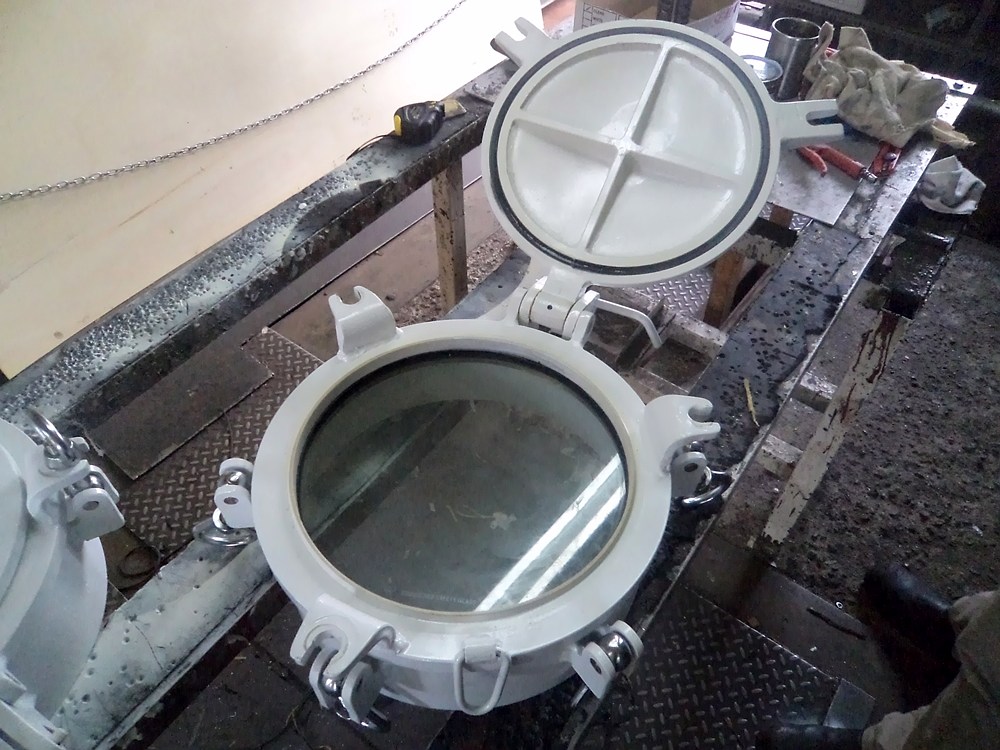

Circular scuttles for hull and superstructure openings, designed to ISO 1751, with hinged deadlights where the position calls for them.
| Types | Hinged or fixed |
|---|---|
| Frame | Aluminium, steel or brass |
| Glass keep | Aluminium, steel or brass |
| Glazing | Safety toughened |
| Mounting | Bolted |
| Finish | Primed or anodised |
Also available
- Fire-rated windows and scuttles
- Wipers, sunscreens and clear view screens
Certification
Unit certificates are raised per project to the classification society the work requires: ABS, DNV, BV, LR and others on application.
Send the opening dimensions, the glazing specification and the classification society, and we will come back with a quotation.
Windows and scuttles already in service do not always need replacing. We renew the glass, fit a new gasket and re-seal with silicone to restore watertightness.
Repair and refurbishment services ›
